Tenoners > Tenoner - Double end

BACCI TSDE DOUBLE END TENONER

MA ID: TN2-10949
Price: $12,800.00 -or- as low as $258.69/mo.*
General Location: South East
Category:

Tenoner - Double end

Manufacturer: BACCI
Model: TSD-E
Year of Manufacture: 1998
Condition: Good
Electric 230 volt, 60 cycle, 3 phase

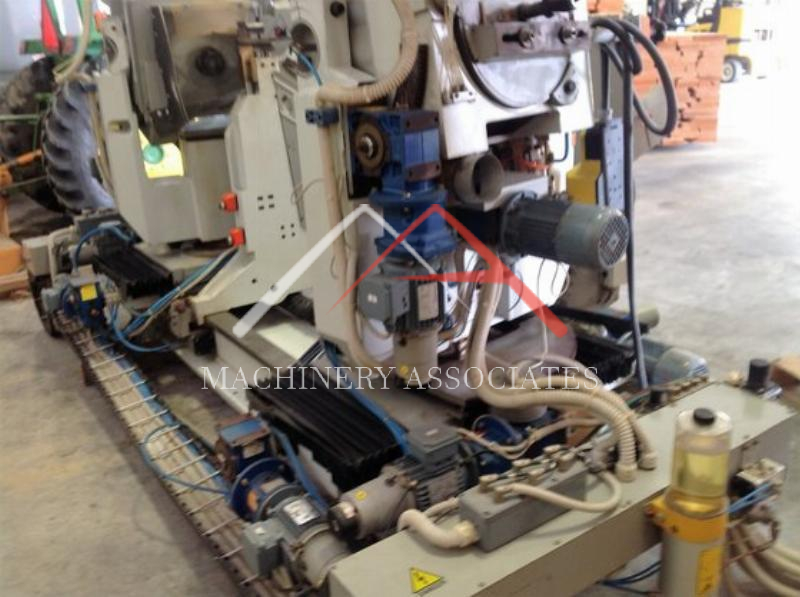

BACCI TSD-E DOUBLE END TENONER

This HIGH Production TSD double round pin machine with auto loading is equipped with (2) opposing drive heads; and will simoultaneously machine both ends of the work piece.

Technical Specifications:

Max. Length: 47-1/4" (1,200 mm)

Min. Length 6" (150 mm)

Max. Pin length: 100+2R mm

Max. Tenonen depth: 40 mm

Max. pin depth 3/8" (10 mm)

Max. pin thickness: 1" (25.4 mm)



Shipping Footprint: 12 (length) x 7 (width) x 6 (height)
Weight: 3500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
