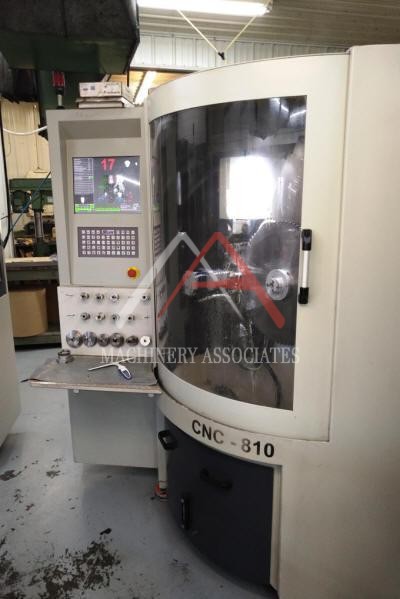

ABM CNC 810 TOPFACE SAW GRINDER
MA ID: | GS - 10891 |
Status: | Sold |
Price: | $34,500.00 |
Category: |
Grinding & Sharpening |
Manufacturer: | ABM |
Model: | CNC 810 |
Year of Manufacture: | 2016 |
Condition: | Very Good |
Electric: | 230 Voltage 60 Cycle 3 Phase |
ABM CNC 810 TOP/FACE SAW GRINDERGrind all common tooth patterns in one pass Working diameter: 4" to 32" (80-810 mm); Tooth pitch 5/32" to 4"; Blade thickness up to 3/8"; Grinding speed up to 25 Teeth/minute. and grinding wheels 5" with 12MM bore. CNC: (7) Axis with 17" color screen monitor; controller Windows 7 PC based. Graphics interface and interface connection for easy upgrades. Programing of special tooth patterns. Auto plate thickness adjusting to self center bevels. X-Axis infeed; Y-Grinding axis: Z-axis indexing; A-axis beveling; B-back angle and hook angle; V-axis clamping and W-axis saw blade positioning. Auto broken tooth skip and variable pitch indexing. Programs for newly replaced tips. Coolant: 13 gallon/minute flood coolant with 25 gallon tank. Includes: Central lubrication of moving axis parts. Note: Alternating shear angle in one pass.
|
|
Shipping Footprint: | 85 (length) x 54 (width) x 75 (height) |
Weight: | 2100 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
