2016 Giben G4 EVO 49 Feed Through CNC Router

A late model CNC Router cell (with Infeed and Offloading capacities) at LESS THAN 1/2 PRICE OF NEW!! Same machine as Andersen's EVO model.

MA ID: RC3-11761
Price: $44,500.00 -or- as low as $899.34/mo.*
General Location: South West
Category:

CNC Router (3-axis)

Manufacturer: Giben
Model: G4 EVO 49
Year of Manufacture: 2016
Condition: Very Good
Electric 208/240/480 volt, 60 cycle, 3 phase

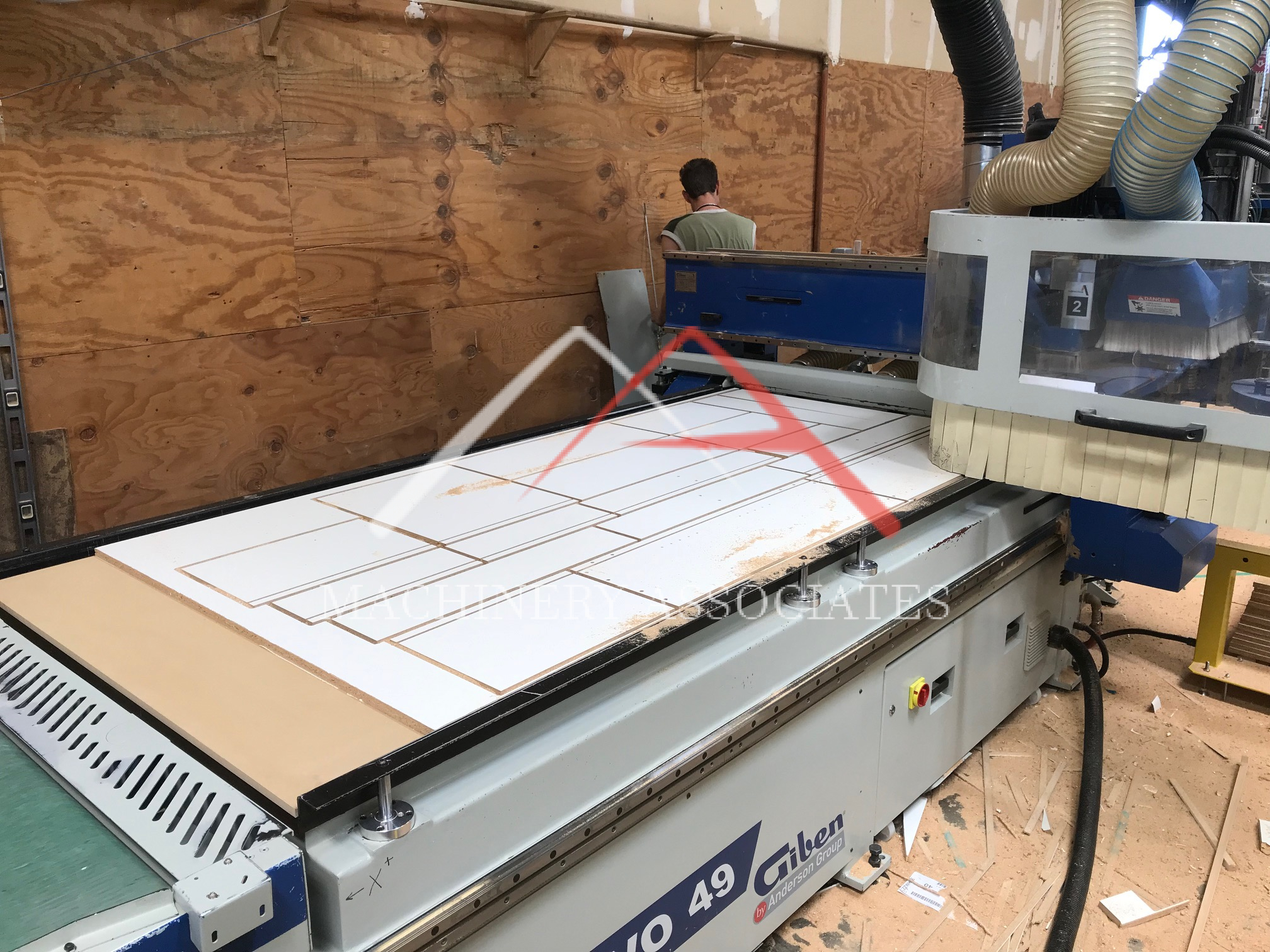

2016 Giben G4 EVO 49 CNC Router Feed Through Cell

A Late Model Feed through machine. Under power for inspection!

Load the infeed with a full lift of sheet goods, tell the machine what to cut and it will load the sheets one at a time...cut then....then push the cut parts off, all while vacuuming the spoilboard and loading the next sheet at the same time!!

SUPER EFFICIENT!!



TECHNICAL DATA

Table Size; 2700mm x 1300mm (4FT X 9FT) (Cast Iron topped with Hardened PVC/Phenolic Grid table)

Router Spindle: 15 Hp ANDI HSK-63f air cooled spindle 1,000 – 24,000 RPM

Drill Block; 5 x 5 Vertical

Vacuum Pump; One 10hp Becker vacuum pump

Tool Change;  8 position carousel tool changer with indexing system

Auto Lubrication;  Yes



Maximum feed rate;

X-axis 80 m/min

Y-axis 80 m/min

Z-axis 30 m/min

Vacuum Pump; Becker 10hp (250 cubic meter/hour)

Rigger: Required on selling end
Required on buying end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
