Edgebanders > Edgebanders -Single Sided

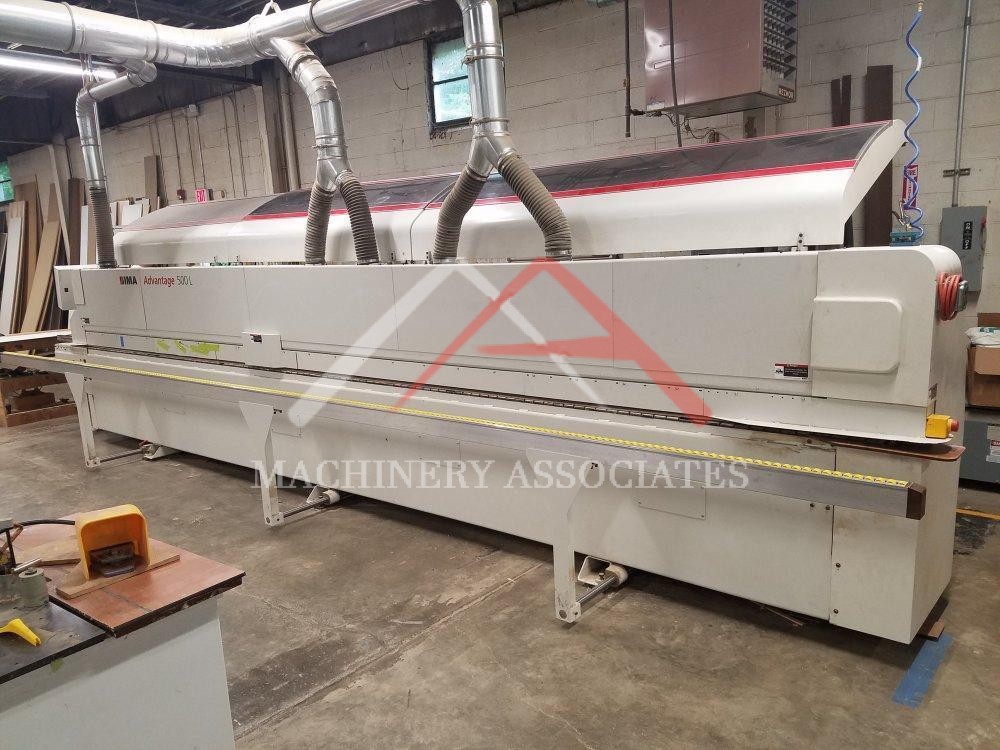

2010 Ima Advantage 500 Edgebander

Ima Edgebanders are German built quality machines.

MA ID: EBS-11130
Price: $29,750.00 -or- as low as $601.25/mo.*
General Location: North East
Category:

Edgebanders -Single Sided

Manufacturer: Ima
Model: Advantage 500
Year of Manufacture: 2010
Condition: Good
Electric 480 volt, 60 cycle, 3 phase
A pretty nice Ima. Well optioned and ready to sell.

Edgebanding Thickness;  0.3 - 3 mm  (0.012” - 0.118");

Panel thickness  8 - 60 mm (0.315” - 2.362").



Equipped With:

Pre-Milling Unit with SIKO digital readouts;

Glue System with "quick-look" system that can be apply hot-melt glue or PUR.

Pressure Roll Section with (1) large dia. driven and (5) idle rollers.

End Trimming Unit 08.415: High speed, double motor  chamfer 0° - 15° for speeds up to 32 m/min (105 ft./min).

Top & bottom flush trimming, kW 1.0 x 2 (HP 1.34 x 2) - 12,000 RPM ea. motor.

Corner Rounding Unit CTU-L: Top & bottom kW 0.4 x 4 (HP 0.53 x 4) motors.

Profile scrapers for up to 3 mm thick PVC banding, vertical & horizontal tracing shoes.

Cleaning agent top/bottom

Glue Scraping Unit 08.521: Flat, top & bottom self-tracing glue scraper, N.C. controlled.

Buffing Unit: Top & bottom

Shipping Footprint: 25 (length) x 4 (width) x 6 (height)
Weight: 6500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
