ATECH CRATER 02AP UPCUT SAW AUTO FEED

Great saw for light weight metal, plastic or composite.

MA ID: SCM-11304
Price: $32,500.00 -or- as low as $656.82/mo.*
General Location: Atlantic
Category:

Cutoff/Miter/Toe Notchers

Manufacturer: Atech
Model: CRATER 02-AP
Year of Manufacture: 2019
Condition: New
Electric 230 volt, 60 cycle, 3 phase

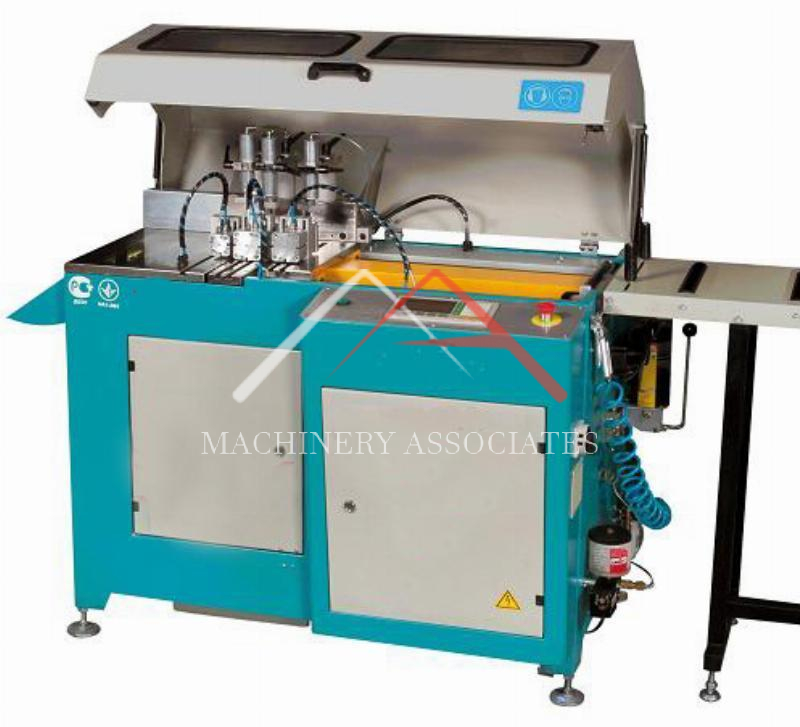

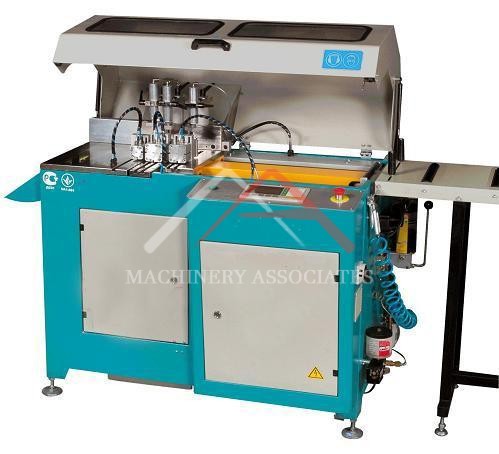

ATECH CRATER 02-AP UPCUT SAW with AUTO FEED



Ideal saw for aluminum extrusion, plastics or composites.

Working dims: Height 100mm x Length 275 mm

Saw: 4 HP motor with 18" dia. carbide tipped saw blade with pneumatic spray mist lubrication.

Table: Infeed table 6'6" powered by servo motor. Handles up to 20 LBS. Air gun for waste dust clear at cut..

Specific capacities: Equipped with 18” carbide tipped circular saw blade and servo system automatic feeding for cutting of all types of aluminum, hard plastics or similar material at 90° angle.

Feed: Servo motor saw blade feed with variable speed control to suit different profiles and materials. Feeder speed is adjustable. Material infeed is servo driven. Stroke of feeder is adjustable from 5 mm to 600 mm (24”). Multiple stroke adjustment is possible up to a maximum length of 9990 mm (33’). Cutting accuracy is ± 0.1 mm.

Software: PLC software controlled working process. Capable of memory storage of previous job specifications (material diameter, length, infeed values). Equipped with digital display for minimum wastage. The upper guard is locked automatically during cutting operation for operator safety. Equipped with air pressure drop sensor (when the air pressure drops under 3 Bar (45 psi) the saw moves to its start position). Machine has been designed in accordance with CE, UL and CSA Safety Directives.

Options:

Tables (Call for price)

SKN 300 is an automated stop and positioning system. It is available in 10′ (3 m), 15′ (4.5 m), or 20′ (6 m). It is equipped with a Servo Motor for maximum accuracy. The LCD Touch Screen provides comfort in control and programming features. The measurements can be input in both imperial and metric units with fraction.  Cut lists can be transferred from PC into the system. It can be equipped to a variety of machines such as upcut saws, radial arm saws, table saws, drills, miter saws, double miter saws and other. Used as a gauge, the SKN-300 eliminates the need of imprecise and repetitive use of the tape measure while optimizing the sequential processing of a work piece.

MKN 300 is a manual roller table. It is available in 10′ (3 m), 15′ (4.5 m), or 20′ (6 m).
