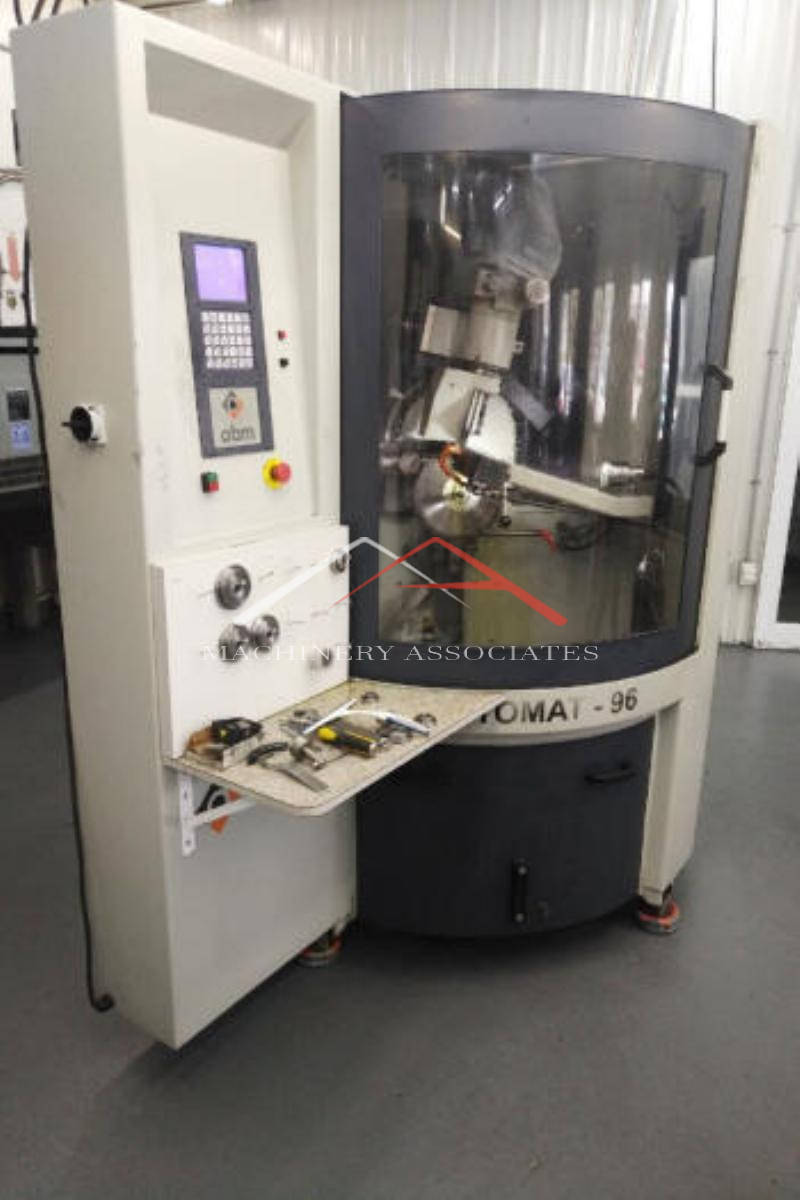

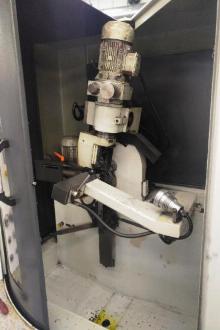

ABM OTOMAT 96 TOPPER/FACER SAW GRINDER

ABM OTOMAT 96 TOP/FACE SAW GRINDER GREAT LOWCOST GRINDER FOR SMALLER SIZE SHOPS FOR GRINDING CARBIDE TCT SAWS

MA ID: GS-11126
Price: $22,900.00 -or- as low as $462.81/mo.*
General Location: South West
Category:

Grinding & Sharpening

Manufacturer: ABM
Model: OTOMAT 96
Year of Manufacture: 2016
Condition: Very Good
Electric 230 volt, 60 cycle, 3 phase

ABM CNC 810 TOP/FACE SAW GRINDER

Grind all common TCT tooth patterns including TCP

Working diameter: 3-1/8"" to 30" (80-750 mm); Tooth pitch -10°to +30°; Bevel angle to +/- 45°; Blade thickness up to 1/4"; Grinding speed up to 25 Teeth/minute. and grinding wheels 4" with 16MM bore.

Grinding motor: 4 HP;  Programing of special tooth patterns. Auto plate thickness adjusting to self center bevels.

Coolant: 13 gallon/minute flood coolant with 25 gallon tank.

Note: Triple Chip in 2-3 passes..

Shipping Footprint: 6 (length) x 7 (width) x 7 (height)
Weight: 2500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
