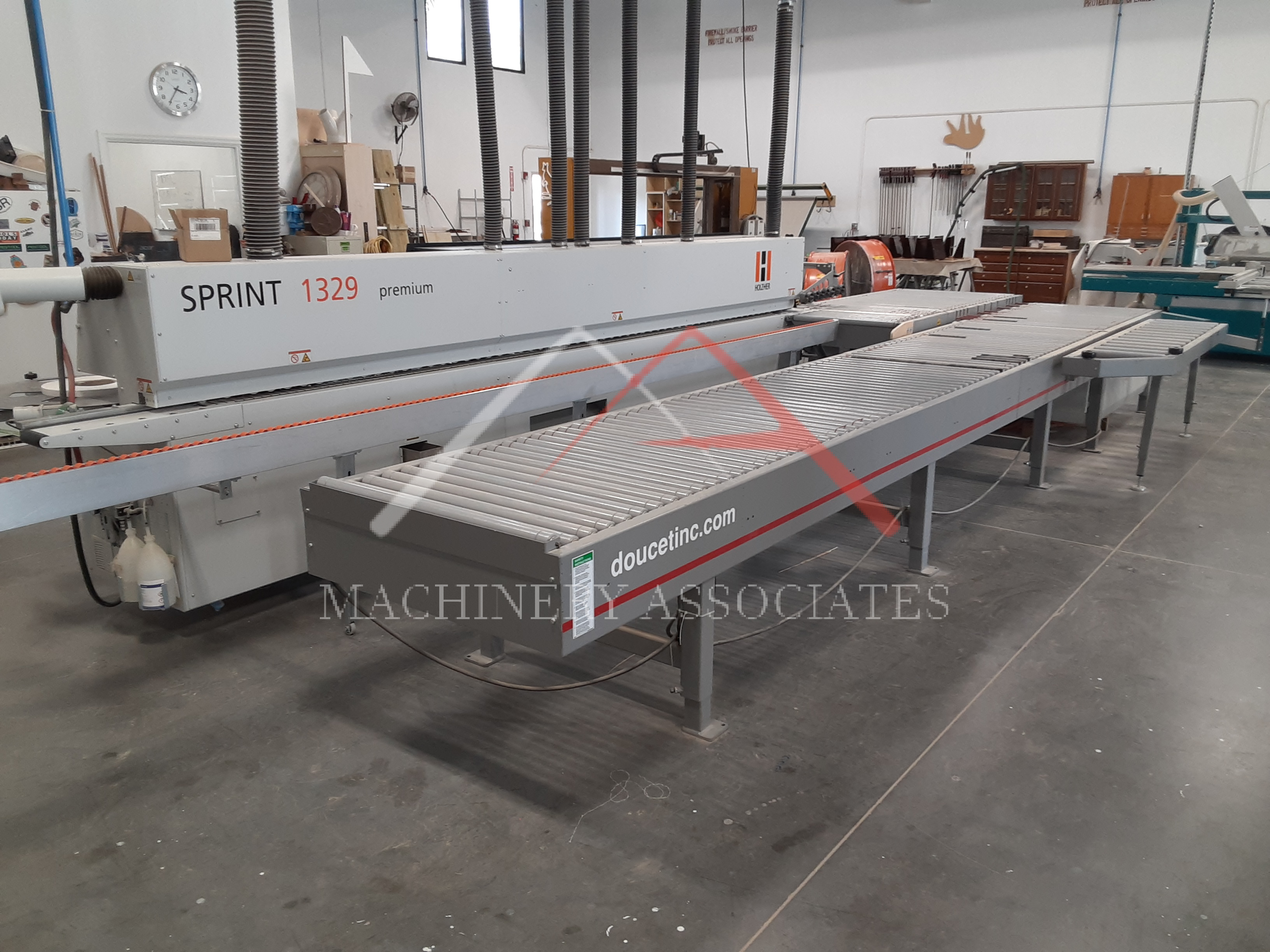

2017 Holzher 1329 Edgebander with Doucet Return Conveyor

A beautiful machine! 116 hours and barely a scratch. This servo controlled machine has all the goodies...Premill and Corner Rounding!!

MA ID: EBS - 12286
Status: Sold
Price: $79,900.00
Category:

Edgebanders -Single Sided
Manufacturer: HolzHer
Model: 1329
Year of Manufacture: 2017
Condition: Excellent
Electric: 230 Voltage 60 Cycle 3 Phase
Hours on meter: 116
Holzher 1329 Sprint Premium Edgebander with Doucet BT3-36-5-23-D-PT return conveyor

UNDER CONTRACT



YES, that says 116 hours. It is not a misprint!!

Stock Machine Specification:
- Overall length of machine 5676mm with pull out work piece support on rollers.
- Variable feed speed 10 - 18 m/min
- Suits coils 0.4 – 3 mm and strips 0.4 – 8 mm (15mm possible with tool change at 1827 unit)
- Work piece width minimum 60 mm
- Work piece length minimum 160 mm
- Work piece thickness 6 – 60 mm
- Motorised pressure beam adjustment for bridge.
- Controller with 15" colour touch screen
- Pre-milling unit 1802 with 2 cutter units for joining the panel edge. Includes diamond cutters.
- Edge feeder 1903 SYNCHRO for automatic transport of coils and single strips with feed belt.
- Glue application system Glu Jet GJ301 (2.3kW, 50Hz) suitable for processing EVA and PUR adhesives. Tracing nozzle enables automatic adjustment of gluing height. Heat up time only 3 minutes with patented nozzle technology.
- Pressure unit 1913 MOT, with first roller driven and two support pressure rollers.
- End trimming unit 1918, pneumatic (60mm) for chamfer type end trimming. Tiltable to 10°.
- Multifunctional trimming unit, 1827 MOT4, for cutting of the top and bottom longitudinal edge. Motorised positioning of the cutter motors, includes pneumatic adjustment and blow nozzles.
- Form trimming unit 1833, MOT 4 for top, bottom & corner rounding with PLC controlled adjustment.
- Finishing scraper unit 1929 MOT with 2 scraper carriers, chip removers and blow nozzles.
- Surface scraper unit 1964, for scraping off the glue residue, including 2 blow nozzles, turn over knives and dust extraction hoods.
- Buffing unit 1940, for edge cleaning and polishing with 2 textile buffing wheels.
- Nesting tracer shoes for trimming unit and radius scraper, for hinge holes down.
- Safety hood for the infeed area.
- Anti-static coolant sprayer unit
- Parting agent sprayer unit.

We are willing to sell the machine without the return conveyor, but not the conveyor without the machine. If the machine sells, the conveyor will be listed separately.
Weight: 6500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
